Toyota Corolla 1.8 litre engine ZRE-152R & ZRE-182R 2007 - 2015 Workshop Manual (92729)

Published by Haynes, HA92729, ISBN: 97811620920688, Paperback, Published in 2015

Repair & service manual for Toyota Corolla 1.8 L engine spanning 2007 to 2015.

Models covered by this repair manual:

• Toyota Corolla ZRE-152R Series Sedan and Hatchback 2007, 2008, 2009, 2010, 2011, 2012
• Toyota Corolla ZRE-182R Series Sedan and Hatchback 2012, 2013, 2014 and 2015

1.8 litre (2ZR-FE) engine

Step-by-step procedures linked to hundreds of asy-to-follow photos and illustrations
Complete troubleshooting section helps identify specific problems
Written from hands-on experience based on a vehicle teardown using commonly available tools
Haynes tips give valuable short cuts to make the job easier and eliminate the need for special tools
Notes, Cautions and Warnings for the home mechanic
Color spark plug diagnosis
Easy to use index

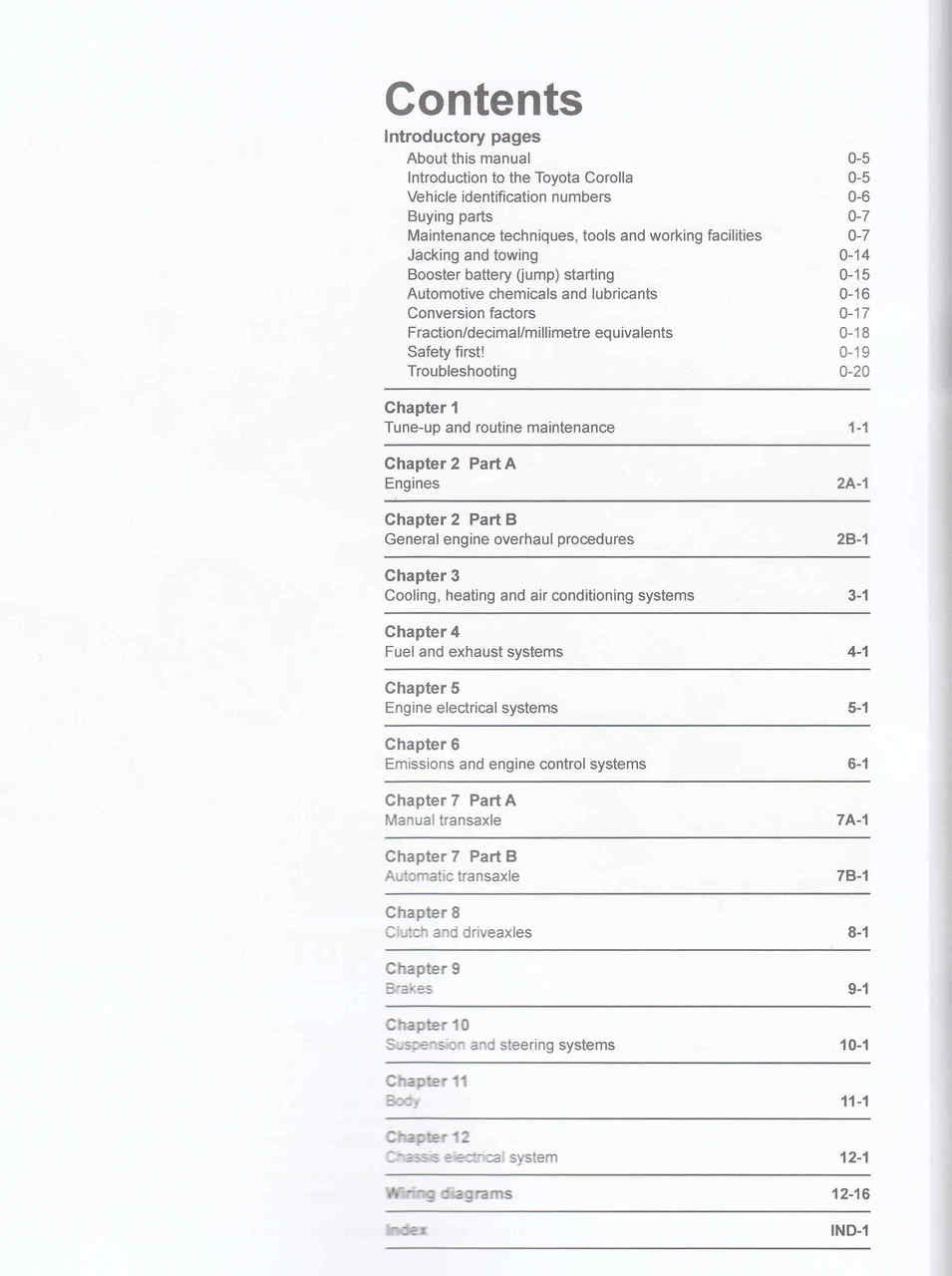

Inside this workshop manual:
Routine maintenance
Tune-up procedures
Engine repair
Cooling and heating
Air conditioning
Fuel and exhaust
Emissions control
Ignition
Brakes
Suspension and steering
Electrical systems
Wiring diagrams

Introduction to the Toyota Corolla

The Toyota Corolla models covered by this workshop manual are four-door sedans and five-door hatchbacks.

The transversely-mounted 1.8 litre 2ZRFE inline four-cylinder engine used in these vehicles is equipped with electronic fuel injecbon.

Two models are covered in this manual, the ZRE-152R model runs from 2007 through to September 2012. From October 2012, the ZRE-182R models were released.

Both models shared the same engine, with the addition of the acoustic control induction system (ACIS) introduced with the ZRE182R model.

Choice of transaxle is either a five-speed manual, a four-speed automatic (ZRE-152R models). or a seven-speed CVT (ZRE-182R). Independent driveaxles transmit drive to the front wheels.

Independent suspension, featuring coil spring/strut damper units. is used on the front of the vehicle.

The rack-and-pinion steering unit is mounted behind the engine with electronic power-assist. The rear suspension uses coil-over shock absorber assemblies, connected to a pressed-steel beam-type axle.

The brakes are disc at the front and rear, with power-assistance.

An anti-lock brake system (ABS) is available on all models, with optional electronic brake distribution (EBD) for better traction and handling.
