Suzuki DR-Z400E, DR-Z400S, DR-Z400SM 2000 - 2012 Workshop Manual (CM4774)

By: Clymer .

Suzuki Models Covered:

Suzuki DR-Z400E,
Suzuki DR-Z400S,
Suzuki DR-Z400SM

2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 and 2012

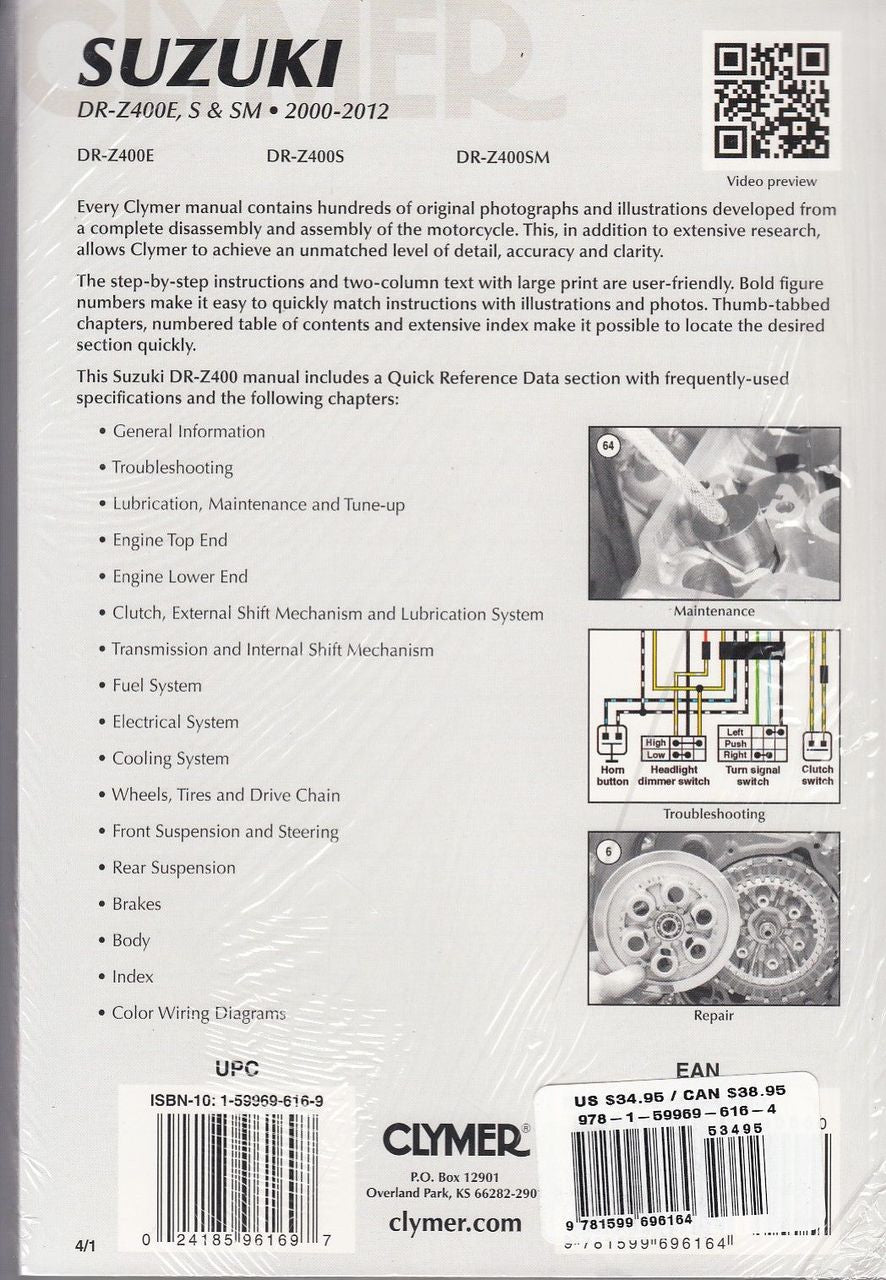

Every Clymer manual contains hundreds of original photographs and illustrations developed from a complete disassembly and assembly of the motorcycle. This, in addition to extensive research, allows Clymer to achieve an unmatched level of detail, accuracy and clarity.

The step-by-step instructions and two-column text with large print are user-friendly. Bold figure numbers make it easy to quickly match instructions with illustrations and photos. Thumb-tabbed chapters, numbered table of contents and extensive index make it possible to locate the desired section quickly.

This Suzuki DR-Z400 manual includes a Quick Reference Data section with frequently-used specifications and the following chapters:

• General Information
• Troubleshooting
• Lubrication, Maintenance and Tune-up
• Engine Top End
• Engine Lower End
• Clutch, External Shift Mechanism and Lubrication System
• Transmission and Internal Shift Mechanism
• Fuel System
• Electrical System
• Cooling System
• Wheels, Tires and Drive Chain
• Front Suspension and Steering
• Rear Suspension
• Brakes
• Body
• Index
• Color Wiring Diagrams
