Small Engines Series 2 Workshop Manual (07426)

By: Gregory's .

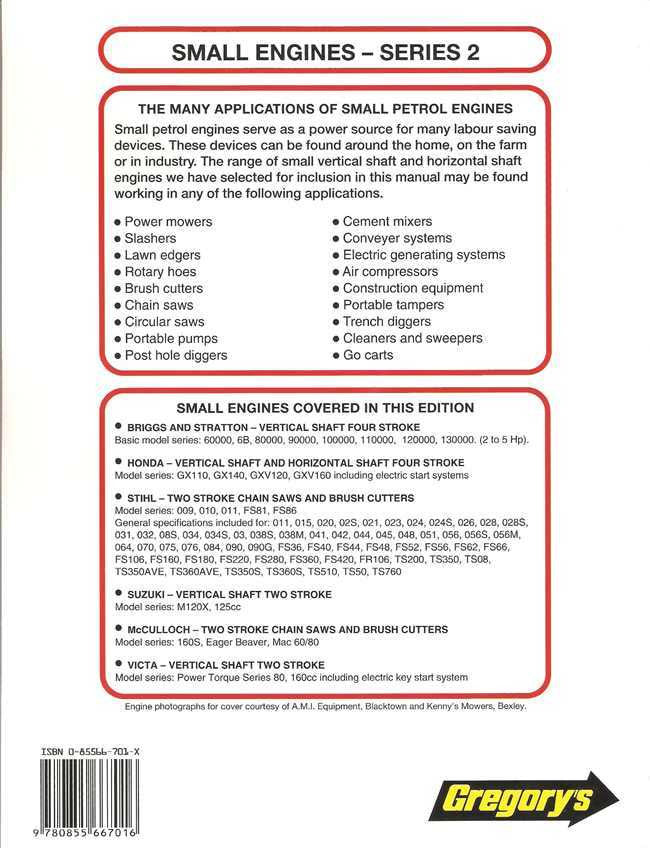

THE MANY APPLICATIONS OF SMALL PETROL ENGINES
Small petrol engines serve as a power source for many labour saving devices. These devices can be found around the home, on the farm or in industry. The range of small vertical shaft and horizontal shaft engines we have selected for inclusion in this manual may be found working in any of the following applications.

• Power mowers
• Slashers
• Lawn edgers
• Rotary hoes
• Brush cutters
• Chain saws
• Circular saws
• Portable pumps
• Post hole diggers
• Cement mixers
• Conveyer systems
• Electric generating systems
• Air compressors
• Construction equipment
• Portable tampers
• Trench diggers
• Cleaners and sweepers
• Go carts

SMALL ENGINES COVERED IN THIS EDITION:

• BRIGGS AND STRATTON - VERTICAL SHAFT FOUR STROKE
Basic model series: 60000, 6B, 80000, 90000, 100000, 110000, 120000, 130000. (2 to 5 Hp).

• HONDA - VERTICAL SHAFT AND HORIZONTAL SHAFT FOUR STROKE
Model series: GX110, GX140, GXV120, GXV160 including electric start systems

• STIHL - TWO STROKE CHAIN SAWS AND BRUSH CUTTERS
Model series: 009, 010, 011, FS81, FS86
General specifications included for: 011, 015, 020, 02S, 021, 023, 024, 024S, 026, 028, 028S, 031, 032, 08S, 034, 034S, 03, 038S, 038M, 041, 042, 044, 045, 048, 051, 056, 056S, 056M, 064, 070, 075, 076, 084, 090, 090G, FS36, FS40, FS44, FS48, FS52, FS56, FS62, FS66, FS106, FS160, FS180, FS220, FS280, FS360, FS420, FR106, TS200, TS350, TS08, TS350AVE, TS360AVE, TS350S, TS360S, TS510, TS50, TS760

• SUZUKI - VERTICAL SHAFT TWO STROKE
Model series: M120X, 125cc

• McCULLOCH - TWO STROKE CHAIN SAWS AND BRUSH CUTTERS
Model series: 160S, Eager Beaver, Mac 60/80

• VICTA - VERTICAL SHAFT TWO STROKE
Model series: Power Torque Series 80, 160cc including electric key start system
