Jaguar XK 120 - XK 140 - XK 150 - XK 150'S' and Mk.VII - Mk.VIII - Mk.IX Models Service Manual

BROOKLANDS BOOKS REPRINT, Softbound, ISBN: 9781870642279,

Authorised 2006 Brooklands Books Reprint of Jaguar Cars Limited 1961 Original Edition issued by Jaguar Cars Ltd. - Coventry - England

This Service Manual has been prepared with the object of assisting all Jaguar Distributors and Dealers in the major servicing, dismantling and reassembling of Mark VII and XK 120 cars and their components. The manual may also be purchased by anyone interested in the contents either direct from Jaguar Cars Limited, Coventry, or from a Jaguar Distributor or Dealer.

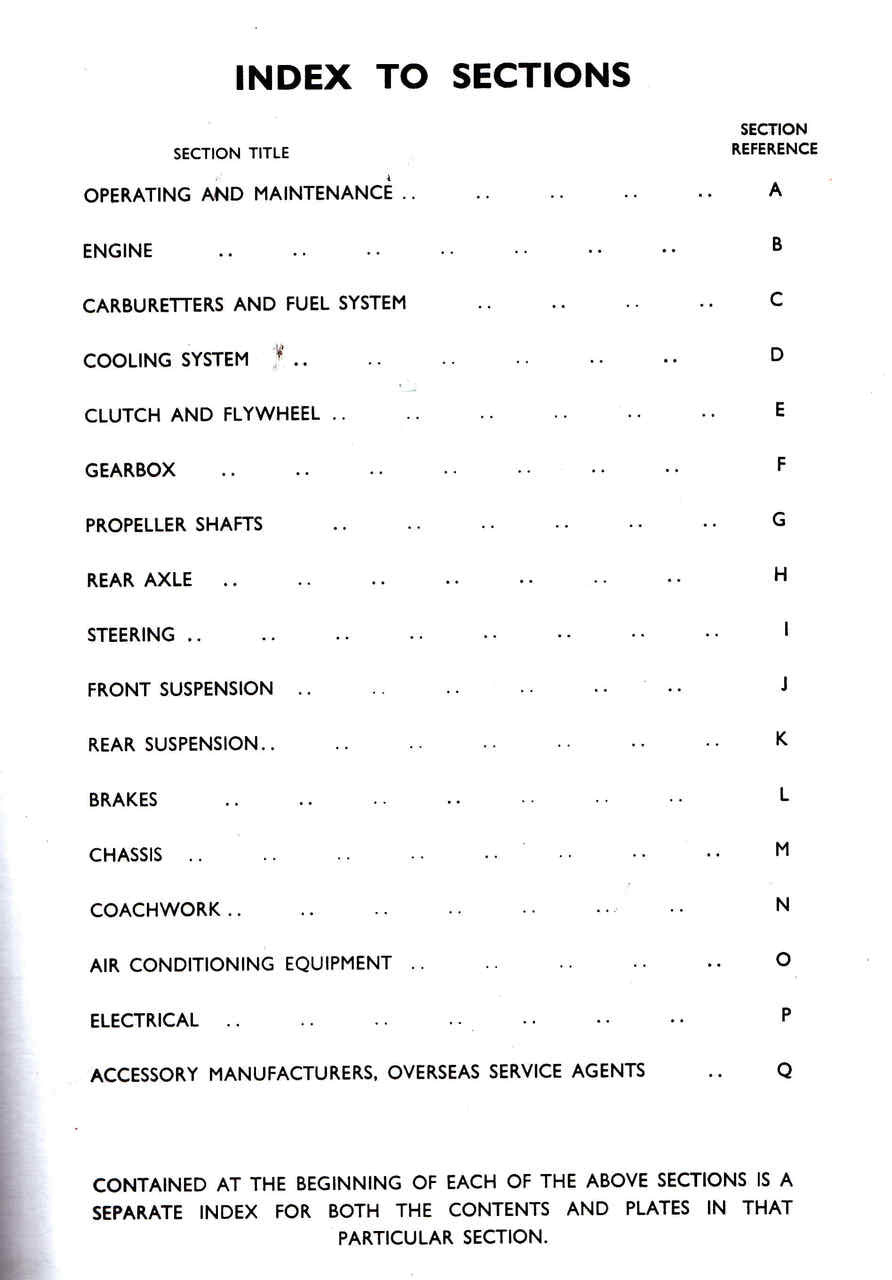

Facing this foreword is a General Index to Sections and each of these sections is, as far as possible, complete in itself without reference to any other section. Each section commences with its own index to contents and index to plates. The pages of each individual section are numbered consecutively from 1 with the page number prefixed by the section reference. The section title is printed in bold type at the top of each page, together with a sub-title and these indicate the subject matter dealt with on that particular page.

Where information of a service nature is required which is not covered by this Manual enquiries should be addressed to The Service Department, Jaguar Cars Limited, Coventry, quoting where applicable the chassis number of the car concerned.
SCREW THREADS

It should be noted that both American and British screw threads are in use on the Mark VII and XK 120 models and therefore care should be taken to identify the type of thread when replacing nuts and bolts or when using threading equipment.
NOTE

Throughout this Manual reference to right hand and left hand is made assuming the driver to be seated in the car and facing forward.
