Harley-Davidson XL / XLH Sportster 1986 - 2003 Workshop Manual (CM4295)

By: Clymer .

Harley-Davidson models covered by this repair manual:

• Harley-Davidson XLH883

• Harley-Davidson XLH1100

• Harley-Davidson XL883R

• Harley-Davidson XL/XLH1200

Every Clymer manual contains hundreds of original photographs and illustrations developed from a complete disassembly and assembly of the motorcycle. This, in addition to extensive research, allows Clymer to achieve an unmatched level of detail, accuracy and clarity.

The step-by-step instructions and two-column text with large print are user-friendly. Bold figure numbers make it easy to quickly match instructions with illustrations and photos. Thumb-tabbed chapters, numbered table of contents and extensive index make it possible to locate the desired section q uickly.

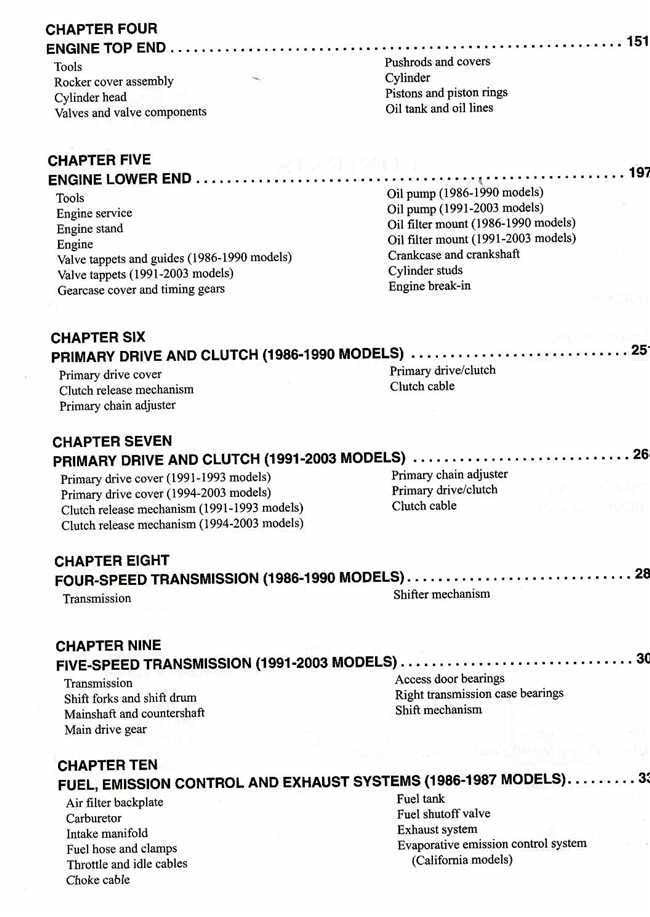

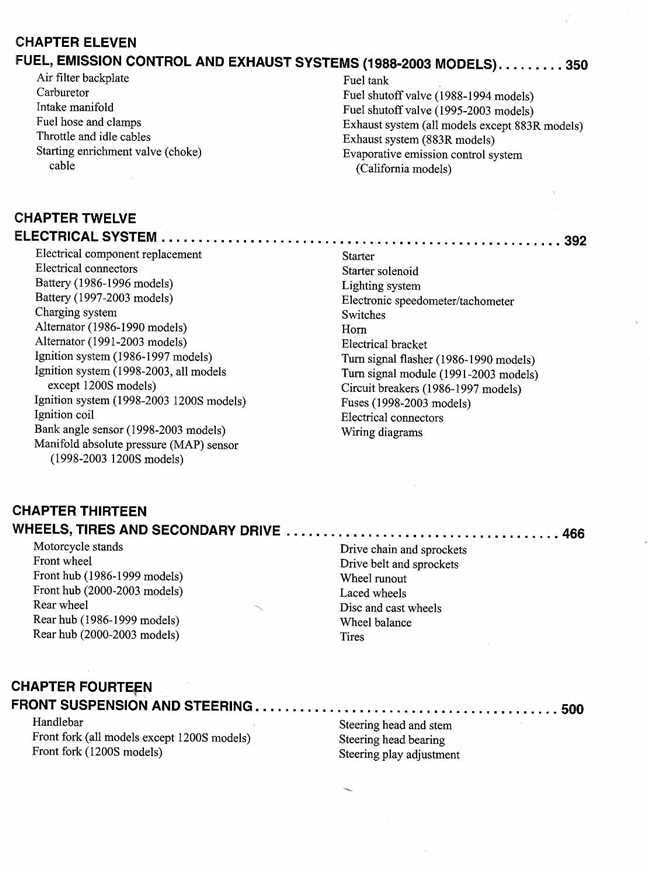

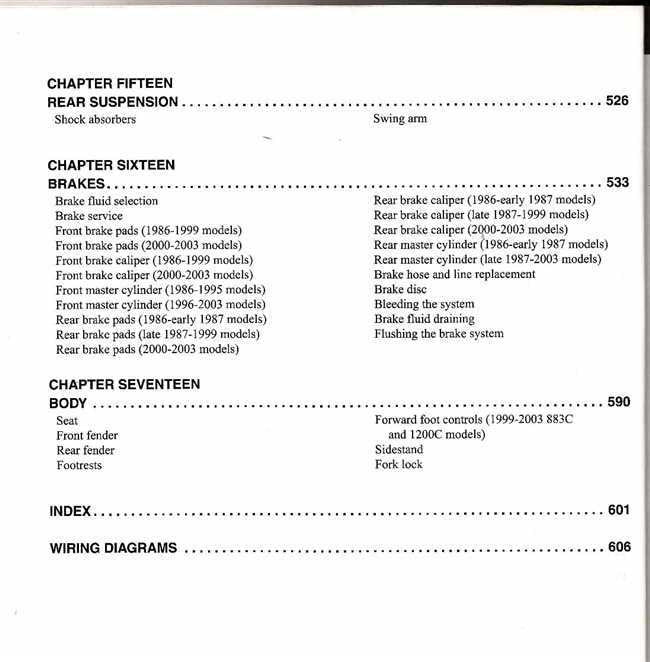

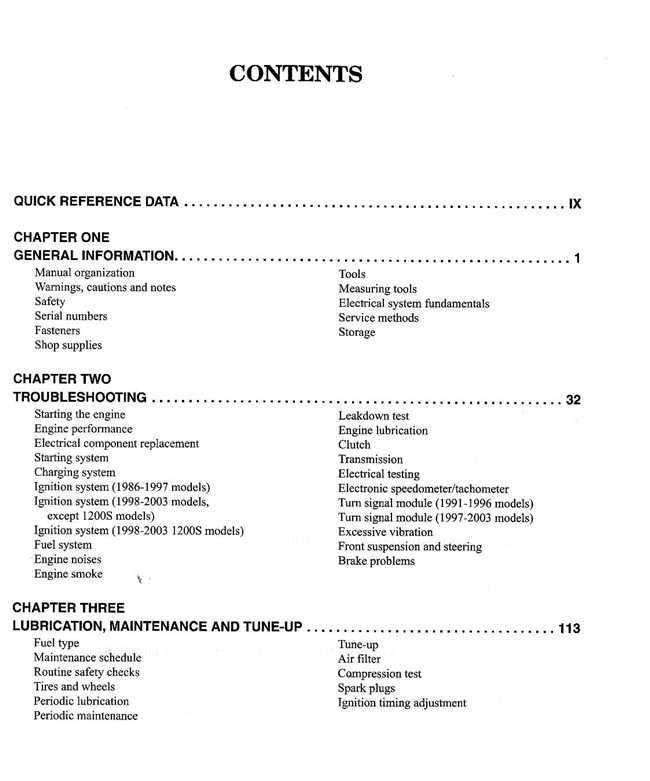

This Sportster manual includes a Quick Reference Data section with frequently used specifications and the following chapters:

• General Information
• Troubleshooting
• Lubrication, Maintenance and Tune-up Engine Top End
• Engine Lower End
• Primary Drive and Clutch
• Four-Speed Transmission
• Five-Speed Transmission
• Fuel, Emission Control and Exhaust Systems
• Electrical System
• Wheels, Tires and Secondary Drive
• Front Suspension and Steering
• Rear Suspension
• Brakes
• Body
• Index
• Color Wiring Diagrams
