Ford Falcon / Fairlane, LTD BA - BF 2002 - 2008 Workshop Manual

By: Max Ellery .

Models Covered

This repair service manual for Ford Falcon and Fairlane covers all sedans including XR6 an XR8, Station Wagon, utility, Cab Chassis and Fairlane - LTD.

The complete BA & BF Falcon range are covered in great detail and feature six cylinder and Ford's V8 engines.

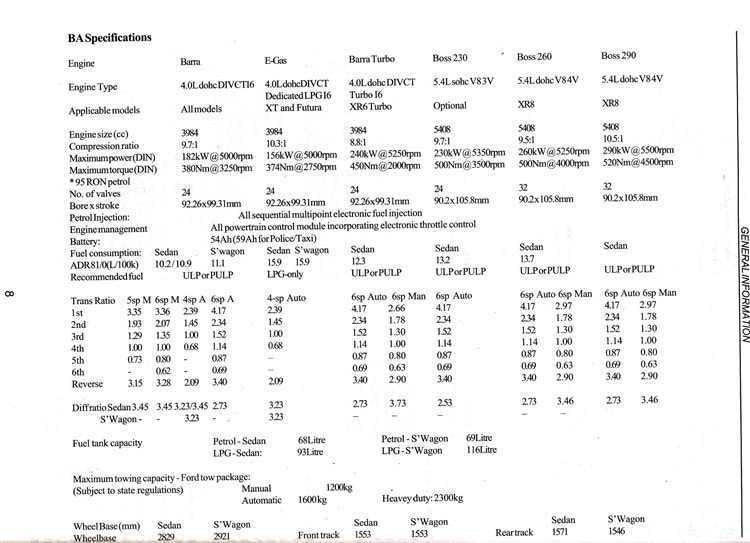

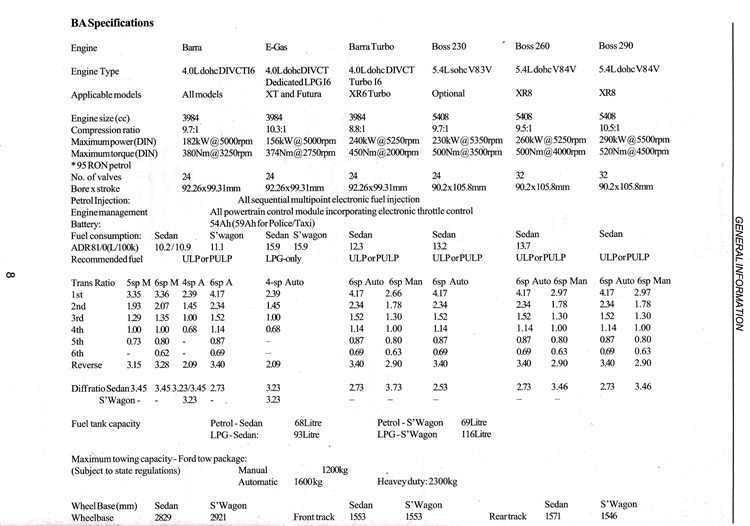

BA Specification:

Barra 4.0L DOHC DIVCTI6, 3984cc, All models
E-Gas 4.0L DOHC DIVCT Dedicated LPG16,3984cc, Xt and Futura
Barra Turbo, 4.0L DOHC DIVCT, Trubo 16, 3984cc, XR6 Turbo
Boss 230, 5.4L SOHC V8 3V, 5408cc
Boss 260, 5.4L DOHC V8 4V, 5408cc, XR8
Boss 290, 5.4L DOHC V8 4V, 5408cc, XR8

BF Specification:

Barra 190 4.0L DOHC DIVCTI6, 3984cc, All models
E-Gas 4.0L DOHC DIVCT Dedicated LPG16,3984cc, Xt and Futura
Barra245T, 4.0L DOHC DIVCT, Trubo 16, 3984cc, XR6 Turbo
F6270, 4.0L DOHC DIVCT, Turbo 16, 3984cc
Barra 230, 5.4L SOHC V8 3V, 5408cc
Boss 260, 5.4L DOHC V8 4V, 5408cc, XR8
Boss 290, 5.4L DOHC V8 4V, 5408cc, XR8

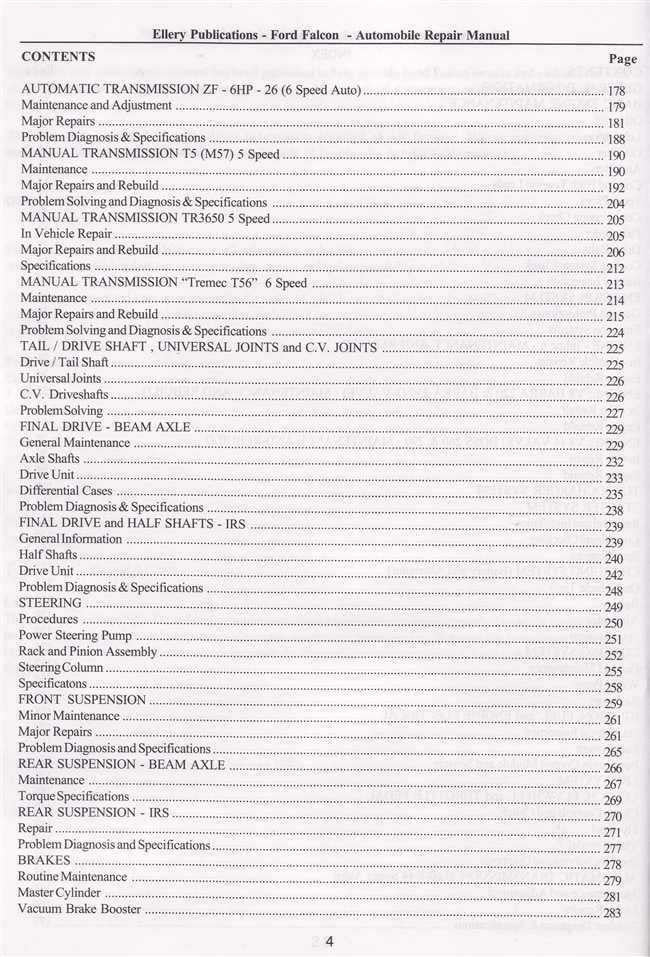

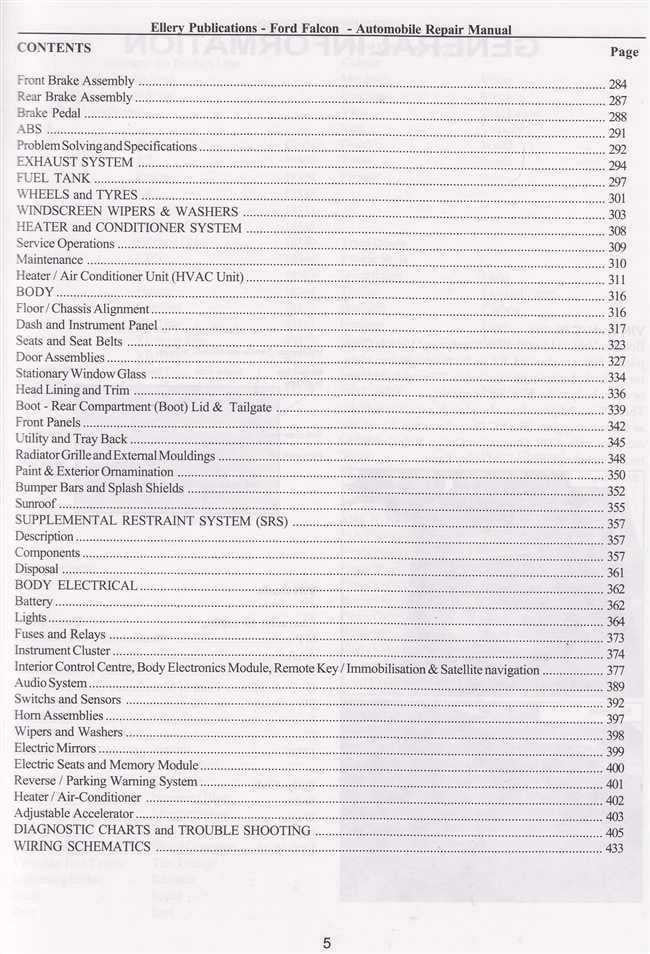

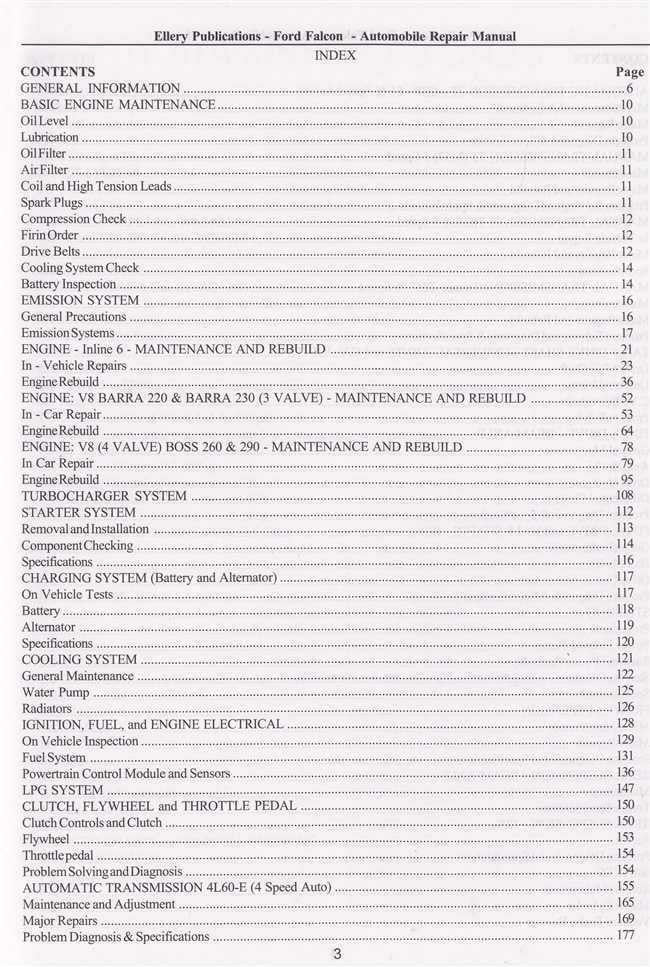

Inside the Manual

• factory specifications
• wiring diagrams
• diagnostic charts
• tune-up information
• detailed and easy to follow diagrams.

This repair and maintenance manual has been published to help provide Ford Falcon owners and enthusiasts with an invaluable, comprehensive and thorough guide in all aspects of restoration, maintenance and mechanical repair work.

The manual is published from the latest information obtained at our factory. Where extensive research is undertaken to obtain the information for the benefit of people who purchase this manual.
